Accesories
BASIC ELEMENTS
| TYPE | PICTURE | TECHNICAL PICTURE | DESCRIPTION | DIMMENSIONS (mm) | COLOR |
|---|---|---|---|---|---|
JOIST |  |  | For balconies, verandas, terraces, piers, harbours. | 30x50x3000 | Dark Brown, Graphite, Light Brown, Grey, Walnut |

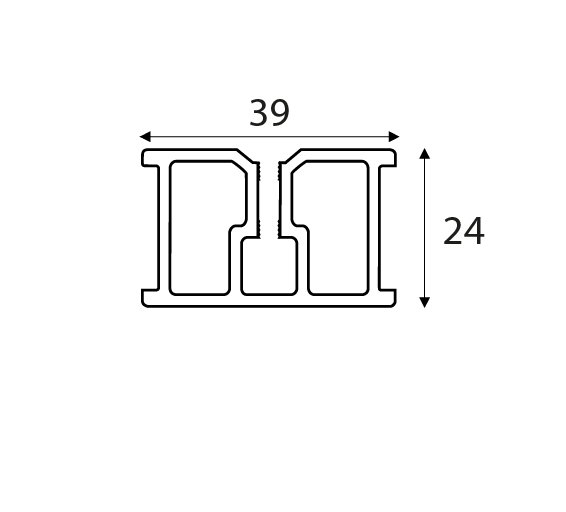

ALUMINUM |  |  | For fixing decking on the ground | 24x39x4000 | gray |
| ANGLE JOINT
|  | – | For joining joists (aluminum crate) | 40x40x18 | galvanized |
| MOUNTING CLIPS 5 MM |  | – | Made from certified steel | Set for 2m2 32 mounting clips 3 starting clips | gray |
| Set for 10m2 160 mounting clips 15 starting clips | |||||
MOUNTING CLIP
|  | – | Made from certified steel | Set for 2m2 (32 pieces.) | black |
| Set for 10m2 (160 pieces.) | |||||
| pieces. | |||||
| ALUMINUM FINISHING STRIP „L” SHAPE |  |  | To finishing edge and side of tarrace | 35x35x3600 | Dark brown Champagne Silver |
| WPC FINISHING STRIP FLAT |  |  | To finishing edge and side of tarrace | 60x6x3000 | Dark Brown, Graphite, Light Brown, Grey, Walnut |
| WPC FINISHING STRIP „L” SHAPE |  |  | To finishing edge and side of tarrace | 35x60x3000 | Dark Brown, Graphite, Light Brown, Grey, Walnut |
| PICTURE | HEIGHT RANGE | |
|---|---|---|
| MIN. (mm) | MAX. (mm) | |
 | 11 | 15 |
| 15 | 19 | |
| 19 | 27 | |
| 27 | 40 | |
| 40 | 70 | |
| 70 | 120 | |
| 120 | 170 | |
| 170 | 270 | |
| 270 | 370 | |
| 370 | 470 | |
| TYPE | PICTURE | HEIGHT RANGE | |
|---|---|---|---|
| MIN. (mm) | MAX. (mm) | ||
| BLACK BASE + BLACK WEDGE |  | 30 | 65 |
| BLACK BASE + GREEN WEDGE |  | 50 | 85 |
| GREEN BASE + BLACK WEDGE |  | 50 | 85 |
| GREEN BASE + GREEN WEDGE |  | 50 | 100 |
| GREY BASE + BLACK WEDGE |  | 70 | 105 |
| GREY BASE + GREEN WEDGE |  | 70 | 120 |
| BROWN BASE + GREEN WEDGE |  | 90 | 140 |
| GREY BASE + BROWN WEDGE |  | 110 | 160 |
| BROWN BASE + BROWN WEDGE |  | 130 | 180 |
| TYPE | PICTURE | DIMMENSIONS (mm) |
|---|---|---|
| BLACK BASE |  | 50 x 43 x 100 |
| GREEN BASE |  | 70 x 43 x 100 3,91 |
| GREY BASE |  | 90 x 43 x 100 |
| BROWN BASE |  | 110 x 43 x 100 |
| BLACK UPPER WEDGE |  | 30 x 43 x 60 |
| GREEN UPPER WEDGE |  | 45 x 43 x 110 |
| BROWN UPPER WEDGE |  | 85 x 43 x 120 |
| SUPPORT 19 |  | 19 x 100 x 100 |
| SUPPORT 38 |  | 38 x 100 x 100 |
| RED MOUNTING WEDGE |  | 8 x 28 x 65 |
| GREY MOUNTING WEDGE |  | 15 x 43 x 88 |
| BLACK MOUNTING WEDGE |  | 25 x 43 x 140 |
| TYPE | PICTURE | DESCRIPTION | DIMMENSIONS (mm) | COLOUR | |
|---|---|---|---|---|---|
| LEVELING PADS |  | Joist leveling pads set of 20 pieces, different size | 34 x 100 x 1 34 x 100 x 2 34 x 100 x 3 34 x 100 x 4 34 x 100 x 5 34 x 80 x 6 | 1 mm 2 mm 3 mm 4 mm 5 mm 6 mm | white blue red yellow green black |
| RUBBER PAD REINFORCED WITH PLASTIC CRATE |  | Stabilisation and sound proofing for joist support | 110 x 110 x 13 | – | |
| PROTECTION PLATE |  | Protection from changing soft support (foil, roof insulation, etc.) To be used with base or support | 110 x 110 x 3 | – | |
